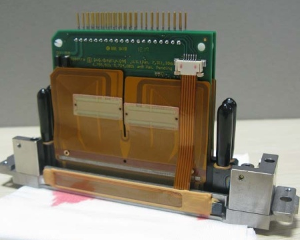

Spectra Polaris 512 35PL Or 15PL AAA print head USD1454-USD1740/Piece

For any printer with this models is ok,and also for the following brand and models:

LIYU PS3204-S512, LIYU PS3208-S512;

Rodin P9320-B (4H), Rodin P9320-B (8H);

Flora PP2512UV,

SMART uv printer

JHF UV R5000, JHF UV R3300, JHF UV R5000S, JHF UV R3300S;

LEOPARD E3000, LEOPARD S2600,

Anhui Liyu Innova PS,

Infiniti Fina 250Q / Fina 320Q,

Eurotech Aslan / Leo / Lion,

Gongzheng GZCK 3212 AK,

Flora LJ 320P,

Rodin P9320-B,

Sun Neo UV-LEDFlatbed,

Teckwin TeckUV 3200SR / TeckStorm TS600 / TeckStorm TS300,

CET Color X-Press X500 / X-Press X500h / X-Press X1000 / X-Press X1000hl,

Truepress Jet W3200UV,

Wit-Color Ultra 4000-3304 / Ultra 4000-3308

And many other brands etc etc,any printer with this model would work fine

Polaris PQ-512/15 AAA:

The Polaris PQ-512/15 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

The printhead is designed for binary jetting using a 15-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 30 picoliters with resolutions up to 1000 dpi.

Features

15 picoliter nominal drop size
Resolutions up to 1000 dpi
512 individual addressable nozzles
VersaDrop™ binary jetting capability
Supports UV-curable, solvent, and aqueous-based inks
Configurable for single- and two-color operation
Integral mounting bezel with precision features
Built-in heaters and temperature sensors
Operation up to 60°C [140°F]
Simplified field repair with no special tools required

Polaris PQ-512/35 AAA

Any inkjet printer with exactly this model is proper ,and also for the following models and brands:

ORASIGN W-320PQ, ORASIGN W-180PQ,

WIT-COLOR ULTRA4000 4H/6H, WIT-COLOR ULTRA4000 8H,

Flora LJ320P,

GONGZHENG GZT3204, GONGZHENG GZT3202, GONGZHENG GZR3208, GONGZHENG GZT3208AU,

JHF A8 3304PQ, JHF A8 3308PQ,

LEOPARD Q8 3304PQ, LEOPARD Q8 3308PQ,

APRINT 330P,

DGI PQ-3202 / PQ-3204,

Eurotech Turbo,

Flora HJII 5000UV,

Wit-Color Ultra 4000-3304 / Ultra 4000-3308,

JHF Vista Q8 3304PQ / Q8 3308PQ,

Gongzheng StormJet T3208AU,

Kornit Paradigm 933

And other brands etc etc,if with this model,that would work fine

Polaris PQ-512/35 AAA

The Polaris PQ-512/35 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

The printhead is designed for binary jetting using a 35-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 80 picoliters with resolution up to 800 dpi.

Features

35 picoliter nominal drop size
Resolutions up to 800 dpi
512 individual addressable nozzles
VersaDrop™ binary jetting capability
Supports UV-curable, solvent, and aqueous-based inks
Configurable for single- and two-color operation
Integral mounting bezel with precision features
Built-in heaters and temperature sensors
Operation up to 60°C [140°F]
Simplified field repair with no special tools required

Below are the Spectra Polaris 512 heads sent to clientes recently:

New SpectraTM Polaris PQ-512/15 inkjet printhead taps Q-Class hybrid construction, repairable design and VersaDropTM binary jetting to support exacting printing applications requiring resolutions to 1000 dpi.

The Spectra Polaris PQ-512/15 printhead utilizes the binary operating capability of Dimatix’ VersaDropTM jetting technology and Q-Class hybrid construction to deliver ink drop sizes from 15 to 30 picoliters from 512 individually addressable inkjet nozzles at continuous frequencies up to 45 kHz fired at 8 meters/second velocity with exceptional straightness.

The new Spectra Polaris printhead is equipped with a flexible, fluid interface allowing single or two-color operation with a broad range of inks, including UV-curable inks and aggressive organic solvents, making it suitable for a broad range of commercial and industrial printing applications such as wide-format, label and package printing at resolutions to 1000 dpi.

An integral mounting bezel designed with precision registration points enables drop-in alignment – a unique repairable feature allows each 256-channel jet module to be exchanged and accurately registered in the field without the need for special tools or recalibration. Each 256-channel jet module is also dual-ported to facilitate ink flushing and recirculation. Heaters and temperature sensors allow precise control of ink viscosity at jetting temperatures up to 70oC.

“The Spectra Polaris PQ-512/15 printhead gives systems builders the option to design scanning products tailored to a wide range of printing applications requiring both speed and print quality,” “That high level of versatility in an economical printhead module designed to provide long-service life and simplified field maintenance will make the Spectra Polaris PQ-512/15 the printhead of choice to drive a new class of highly flexible printer products.”
