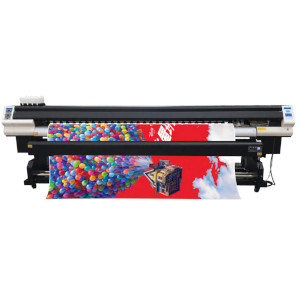

Model Name:AM7322-XP
Print Width: 3.2meters
Maximum Media width: 3.2meter
Print head： Epson XP600 print head
Number of Print head：2 piece
Resolution: 720 dpi
Printing Speed: 4Pass Mode 22 square meters per Hour
Printing Media: PP Paper, Photo Paper, Vinyl, Transfer Paper,Blue back paper etc
Color : CMYK
Ink :Eco-Solvent ink,Sublimation Ink(or other water based ink)
Ink Capacity : 1 Liter per Color
Port of Connection to Computer : USB/NET
Print head to Media distance: 2mm to 3 mm
Printing Location system: Raster and Servo system
Ink drying System: Fan and heater
Motor and Driver system: Combined high precision motor and driver for Carriage and Step
Printing System: Hoson, the leader of printing system in China
Ink Station: Aluminum high precision Print head Maintenance Station.
Rip Software : Maintop, RIIN, Photoprint
Photo format: JPG,TIFF,BMP,PDF
Heating system: Automatic Temperature Control system equipment.
Media supply system: Automatic Media roll-up system
Maximum Media weight: 50kgs
Power demand: 50/60HZ 220V AC,Printing Power demand: 2000W,Heater Power Demand :3600W
Working Temperature: 20-25 CESUS
Working Humidity: 40-70%
Machine Size: L4400mm X W900mm X H1440mm
Net Weight:550 KGS
Packing Size: L4500mm X W1000mm X H1540mm
Gross Weight: 630 KGS
(The real machine might be a little different to the printer showed in this catalog,especially some detail might be different)
