Material whole plate processing, processing width up to 1250mm, suitable for wide/planing groove, bending completed once, arc height matching.
Reduce the difficulty of welding, shorten the grinding time, save labor cost/stable process effect, high consistency of batch processing

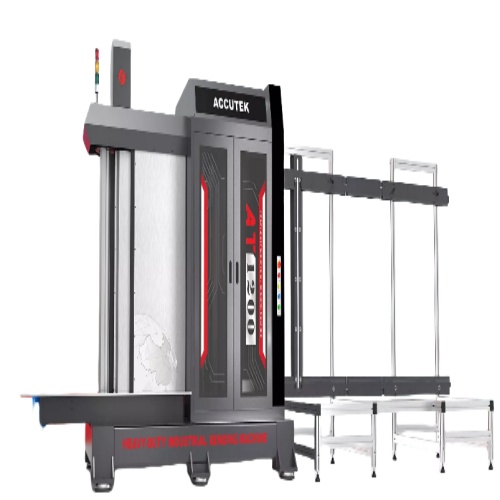

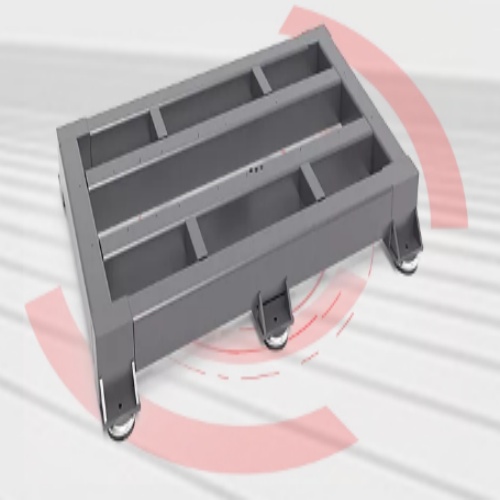

AT1200 adopts industrial bed structure design, high rigidity, low vibration, high durability.
SLOTTING SYSTEM

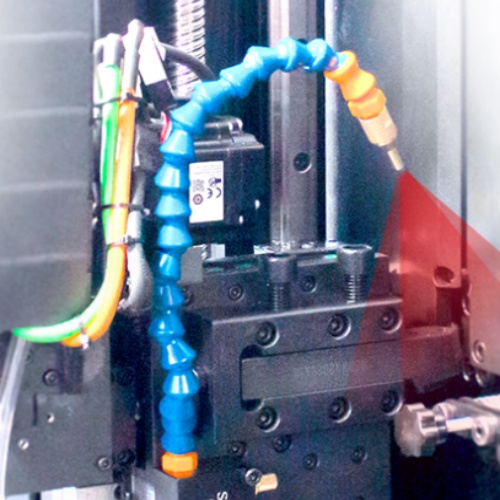

Carbide alloy planer as slotted tools;Blade double side with 8 knife edges no need to sharpen the knife;Cooperate with oil mist automatic injection device, increase lubrication function;Ensure the slotting effect is smooth and flat.
FEEDING SYSTEM
■ Set in front and back two sets of manipulator gripping material progressive work
■ Manipulators are designed with 1:2 lever
■ Strong clamping of the material to eliminate the phenomenon of feeding skid
■ Progressive feeding structure, which can effectively reduce material waste

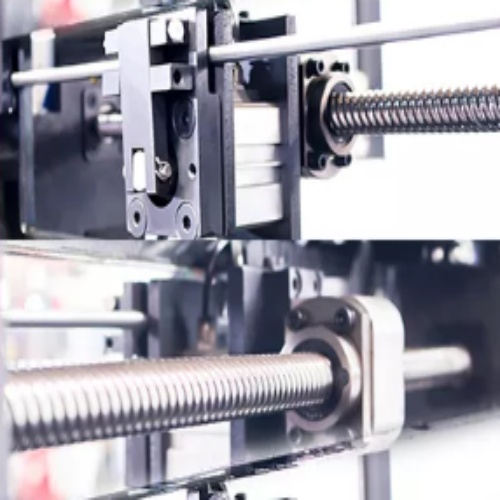

■ Servo Drive System+High Quality Linear Guide rail and ball screw drive system made the feeding smooth and powerful
