Model Name:AM1601XP
Print Width: 1.6meters
Maximum Media width: 1.6meter
Print head： Epson XP600 print head
Number of Print head：1 piece
Resolution: 360 x 720 dpi
Printing Speed: 4Pass Mode 12 square meters per Hour
Printing Media: PP Paper, Photo Paper, Vinyl, Transfer Paper,Blue back paper etc
Color : CMYK
Ink :Eco-Solvent ink,Sublimation Ink(or other water based ink)
Ink Capacity : 1 Liter per Color
Port of Connection to Computer : USB/NET
Print head to Media distance: 2mm to 3 mm
Printing Location system: Raster and Servo system
Ink drying System: Fan and heater
Motor and Driver system: Combined high precision motor and driver for Carriage and Step
Printing System: Sengyang
Ink Station: Aluminum high precision Print head Maintenance Station.
Rip Software : Maintop, RIIN, Photoprint
Photo format: JPG,TIFF,BMP,PDF
Heating system: Automatic Temperature Control system equipment.
Media supply system: Automatic Media roll-up system
Maximum Media weight: 80kgs
Power demand: 50/60HZ 220V AC
Working Temperature: 20-25 CESUS
Working Humidity: 40-70%
Machine Size: L2,680mm X W750mm X H1250mm
Net Weight:200 KGS
Packing Size: L2,600mm X W600mm X H400mm
Gross Weight: 240 KGS

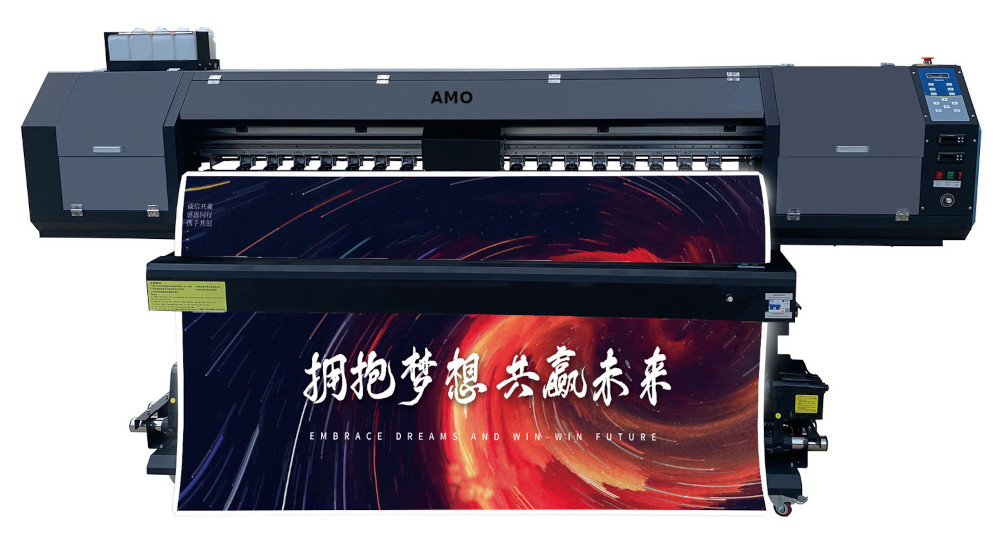

(The real machine might be a little different to the printer showed in this catalog,especially some detail might be different)
Ink supply system
Print head Maintenance Station(Print Head cleaning station)
Media Pinch Roller
